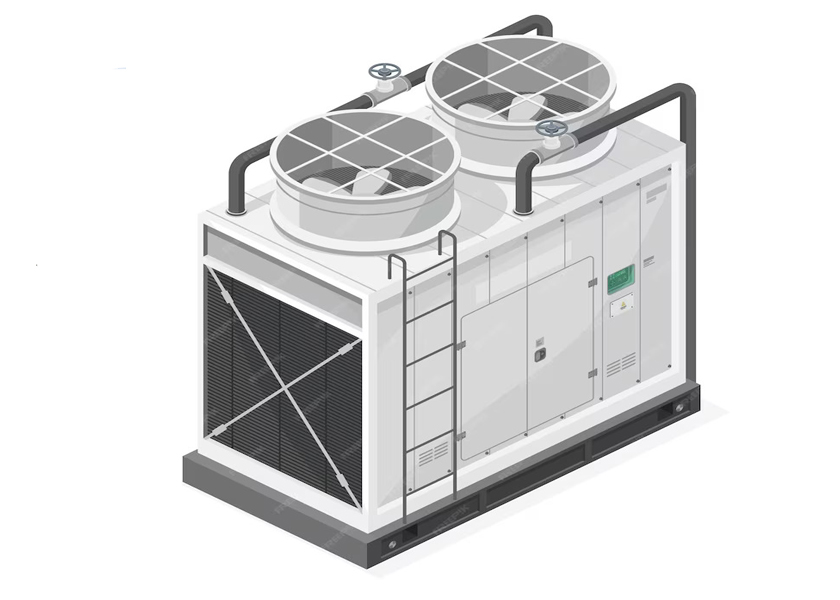

Evaporative Condensers

Evaporative condensers are specialized heat exchangers used in refrigeration and air conditioning systems to remove heat from a process fluid (usually refrigerant) by evaporating water. They operate on the principle of combining the latent heat of vaporization with the sensible heat transfer process, resulting in efficient cooling.

title icon
Key Components of

Evaporative Condensers

  1. Coil or Heat Exchange Surface: This is where the hot refrigerant or process fluid flows. It is surrounded by a layer of water that evaporates when it comes into contact with the hot surface, absorbing heat in the process.
  2. Fan: Evaporative condensers are equipped with one or more fans that draw ambient air through the coil, aiding in the evaporation process and dissipating heat.
  3. Water Distribution System: This system ensures that water is evenly distributed over the surface of the heat exchanger, allowing for efficient evaporation.
  4. Water Collection Basin: The basin collects and recirculates the water that has dripped down from the coil. It often contains a sump pump to facilitate water circulation.
  5. Air Inlet Louvers and Drift Eliminators: These components help direct airflow over the coil and prevent water droplets from escaping the condenser.
title icon
Operation of

Evaporative Condensers

  1. Water Circulation: A pump circulates water from the collection basin to the top of the condenser, where it flows over the heat exchange surface.
  2. Airflow: Fans draw air through the condenser, causing the water on the heat exchange surface to evaporate. This evaporation process absorbs heat from the refrigerant or process fluid.
  3. Heat Exchange: As the water evaporates, it cools the surface of the coil, allowing the refrigerant or process fluid to release its heat.
  4. Condensed Water Collection: The condensed water and any excess water from the evaporation process are collected in the basin and pumped back up for re-circulation.
title icon
Advantages of

Evaporative Condensers

  1. High Efficiency: Evaporative condensers are highly efficient in removing heat from the system due to the combined latent and sensible heat transfer process.
  2. Water Conservation: They use water for the evaporation process, which can be recirculated, making them more water-efficient compared to other cooling methods.
  3. Space-Saving Design: Evaporative condensers are often more compact than equivalent air-cooled condensers, making them suitable for installations where space is limited.
  4. Lower Operating Temperatures: They can operate at lower temperatures compared to air-cooled condensers, which is advantageous in hot climates.
title icon
Applications of

Evaporative Condensers

  1. Refrigeration Systems: They are commonly used in industrial and commercial refrigeration systems for air conditioning, cold storage, and process cooling.
  2. Power Plants: Evaporative condensers are used in power generation plants to condense steam in the turbine cycle.
  3. Chemical Processing: They are employed in chemical plants for cooling various processes, including condensing gases and cooling reactors.
  4. Food and Beverage Industry: Evaporative condensers play a crucial role in cooling processes in food processing plants and breweries.
  5. HVAC Systems: They are used in large-scale air conditioning systems for buildings, especially in regions with high temperatures.

Overall, evaporative condensers provide an efficient and environmentally friendly method of heat removal in various industrial and commercial applications, making them a popular choice for processes that require effective cooling.
